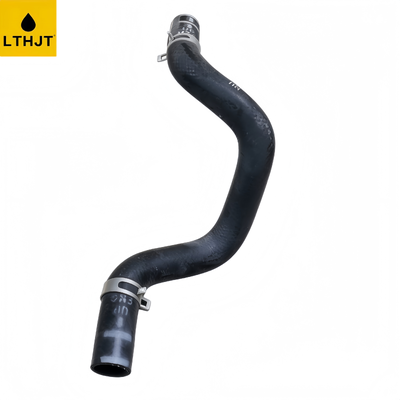

97312-Q2000 Rubber Coolant Hose Hyundai Kia KX3 Cooling System Hose Replacement
| MOQ: | 10 Pieces |
| Price: | USD 5.00-7.00 / Piece |
| Standard Packaging: | Neutral packaging |
| Delivery Period: | 10 Days |
| Payment Method: | L/C,D/A,D/P |
| Supply Capacity: | 100000 Pieces per Month |
Detail Information
Place of Origin
China
Brand Name
LTHJT
Model Number
97312-Q2000
Highlight:
OEM Number Cross Reference
,Rubber Coolant Hose Direct Fit
,Heat Resistant Hyundai Hose
Product Description
1. Product Details
- Product Emphasis: High-durability automotive climate control line engineered to safely return engine coolant away from the interior cabin heater core back into the main engine cooling system loop.
- Original Number: 97312-Q2000 / 97312Q2000.
- Dimensions: Molded with a customized multi-curve layout profile optimized to wrap efficiently around lower frame components without rubbing against chassis parts.
- OEM Standard Size: Pure 1:1 original equipment structural specification copying factory diameter profiles for an airtight, stress-free fit without custom modification.
- Vehicle Adaptability: Configured explicitly for modern fuel-efficient passenger cars and crossover utility networks requiring optimal interior climate regulation.
- Brand Compatibility: Factory genuine parts standard developed primarily for Hyundai and Kia core model lines, while universally acting as a premium replacement layout across specific regional aftermarket lines.
- Years Covered: Tailored across production lifecycles spanning from 2020 through 2026 vehicle models.
- Models Covered: Fully tailored for commuter platforms, including mid-size crossovers, compact urban sedans, and regional utility trims.
- Product Name: Hose Assembly - Water Outlet (HVAC Heater Coolant Return Hose).
- Quality Grade: Certified Brand New Genuine OEM / Heavy-Duty Premium Aftermarket Grade quality.
2. Product Parameters
- Material Matrix: Reinforced heat-hardened EPDM rubber compound matrix fortified with a high-tensile interior woven synthetic fiber braid.
- System Placement: Front engine compartment bay, routing fluid away from the firewall cabin outlet port directly back to the water pump intake or bypass line.
- Operational Temperature Range: Retains structural elasticity safely from -40°F up to 275°F (-40°C to 135°C).
- Maximum System Pressure: Engineered to comfortably withstand continuous thermal loop expansion surges up to 65 PSI.
- Fitment Classification: Direct Drop-in Bolt-on Replacement.
- Exterior Finish: Matte Black protective rubber shell marked with high-visibility factory alignment indicators.
3. Product Features
- Flawless Pre-Formed Layout: Engineered with complex sharp bends that mimic factory geometry perfectly, preventing the line from sagging, rubbing on abrasive frame parts, or contacting high-heat exhaust structures.
- Electrochemical Wear Resistance: Specially treated chemical composition blocks electrochemical degradation (ECD), stopping electrical micro-currents inside the coolant from pitting the walls and creating pinhole leaks.
- Airtight Port Seal: Features tightly controlled inner port tolerances that clamp down perfectly over aluminum heater core pipes, removing risks of vacuum dropouts and slow fluid weeping.
- Kink-Proof Fluid Channeling: The high-strength inner braid ensures the interior fluid path stays completely open and unblocked during heavy engine vibrations and severe freezing cycles.
4. Vehicle Fitment & Year Matrix
- Hyundai Passenger Platforms (Core Gasoline Injection & MPI Engine Trims) — Years: 2020, 2021, 2022, 2023, 2024
- Kia Cross-Compatible Series (Select Sedan & Crossover Trims) — Years: 2021, 2022, 2023, 2024, 2025, 2026
- Alternative Replacement Lines (Verify individual regional sub-trim adaptations by performing a direct parts check via 17-digit VIN) — Years: 2022, 2023, 2024, 2025
5. Frequently Asked Questions (FAQ)
- Q1: What is the main functional difference between this 97312-Q2000 outlet hose and a water inlet hose?
- A1: The water inlet hose transports hot coolant from the engine block into the heater core to provide warm air for the cabin. The 97312-Q2000 outlet hose takes that fluid after it passes through the cabin heater matrix and safely routes it back into the engine block loop to be reheated.
- Q2: Can I use a generic bulk straight rubber hose to replace the 97312-Q2000 component?
- A2: This is highly discouraged. The space behind the engine block near the firewall is packed tightly with structural frame elements and engine brackets. A generic straight hose will kink shut when bent around these tight angles, choking off the coolant flow and causing localized hot spots.
- Q3: Does this heater return hose arrive equipped with factory mounting clamps?
- A3: This assembly is supplied as a pre-shaped molded rubber hose unit. Depending on the production batch, constant-tension metal spring clamps may be included. We recommend inspecting your connection port necks during replacement and renewing clamps if your factory units show signs of fatigue.
